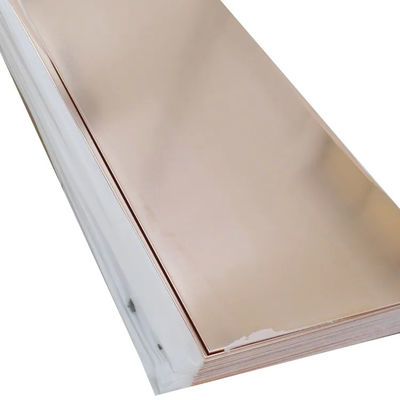

Hot Rolled Copper Nickel 70/30 Alloy Plate CuNi Sheet ASTM B171 C71500 C70600
| Lugar de origen | Shangai, China |
|---|---|
| Nombre de la marca | TOBO |
| Certificación | ISO/TUV/SGS |
| Número de modelo | Placa de níquel de cobre |
| Cantidad de orden mínima | 1 pieza |
| Precio | Negociable |
| Detalles de empaquetado | Paquete de envío estándar |
| Tiempo de entrega | 15-30 días de trabajo |
| Condiciones de pago | T/T, Unión Occidental |
| Capacidad de la fuente | 10 toneladas/mes |
Datos del producto
| Nombre del producto | Hoja de cobre laminada en caliente ASTM B171 C71500 C70600 de CuNi de la placa de la aleación del ní | Resistencia a la corrosión | Alto |
|---|---|---|---|
| Estándar | ASTM B122 | Tratamiento | Cortar, doblar, soldar y perforar |
| Rango de ancho | 100 mm - 1500 mm | Material | Cobre Níquel |
| Conexión | Soldadura | Resistencia a la tracción | ≥400MPa |
| Punto de fusión | 1170°C | Aleación o no | es aleación |
| Solicitud | Decoración | Alargamiento | 20 a 40% |
| Resistencia a la corrosión | Excelente | Conductividad eléctrica | 22% SIGC |
| Composición | 90% de cobre, 10% de níquel | Superficie | Brillante |
| Resaltar | Hot Rolled Copper Nickel 70/30 Alloy Plate,CuNi Sheet ASTM B171,Copper Nickel Plate C71500 |
||
Descripción de producto
Hot Rolled Copper Nickel 70/30 Alloy Plate CuNi Sheet ASTM B171 C71500 C70600
1. Product Description
Copper Nickel Plate is a high‑strength, corrosion‑resistant copper‑nickel alloy plate intended for demanding aqueous environments. The alloy system is based on copper with nickel as the primary solute, plus iron and manganese to enhance resistance to erosion and high‑velocity flow. Principal grades are 90/10 CuNi (C70600) and 70/30 CuNi (C71500). These plates exhibit excellent resistance to seawater corrosion, stress corrosion cracking, and bio‑settling. They are manufactured via hot rolling and optional cold rolling, with dimensions conforming to ASTM B171, ASME SB171, and EN 1652 standards. Plates can be supplied in annealed, quarter‑hard, half‑hard, and full‑hard tempers, with surfaces ranging from plain mill finish to polished or chequered patterns.
2. Product Applications
-
Marine propulsion systems: Water‑lubricated stern tube bearing housings, shaft liners.
-
Desalination pretreatment: Cartridge filter housings, feed water distribution plates.
-
Hydroelectric power: Turbine runner ring cladding, cooling water strainer plates.
-
Chemical transport: Lined pipes and vessels for dilute sulfuric acid and acetic acid.
-
Industrial flooring: Anti‑slip tread plates for offshore cranes, drilling floors, and walkways.
3.Product Advantages
-
Exceptional resistance to erosion‑corrosion in high‑velocity seawater – Verified in long‑term marine trials at velocities >3 m/s.
-
Inherent resistance to crevice corrosion – Outperforms many stainless steels in stagnant seawater.
-
High thermal stability – Mechanical properties remain consistent up to 250°C (short term).
-
Excellent cold working characteristics – Can be bent to 180° over a radius equal to plate thickness without cracking.
-
Easy repairability – Damaged plates can be welded or brazed in situ without special procedures.
-
Long established industry acceptance – Used by major navies and offshore operators for over 40 years.
-
Environmentally benign – No toxic element release; fully recyclable at end of life.
4. Key Product Parameters
| Parameter | Value / Range |
| Product Forms | Flat plate, chequered (tread) plate, coil slit strip (thin gauge) |
| Thickness (HR) | 5 mm – 100 mm (increments of 1 mm) |
| Thickness (CR) | 0.5 mm – 4.0 mm (increments of 0.1 mm) |
| Width (CR) | 600 mm, 1000 mm, 1219 mm, 1250 mm, 1500 mm |
| Length (standard) | 2000 mm, 2500 mm, 3000 mm, 6000 mm (others by agreement) |
| Straightness Tolerance | ≤ 2 mm per meter length (EN 1652 Class 1) |
| Surface Roughness (CR 2B) | Ra 0.2 – 0.4 µm (typical) |
| Coefficient of Thermal Expansion (20–300°C) | 17.0 × 10⁻⁶ /K (C70600) / 16.5 × 10⁻⁶ /K (C71500) |
FAQ
1. Are you trading company or manufacturer ?
We are manufacturer ,You can see the certification.
2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
