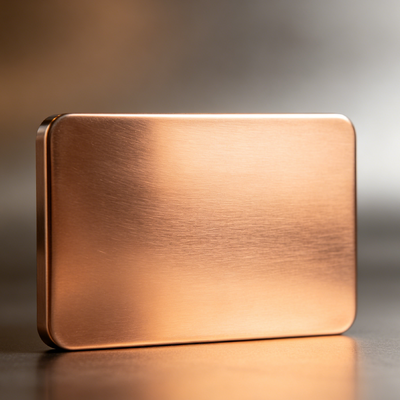

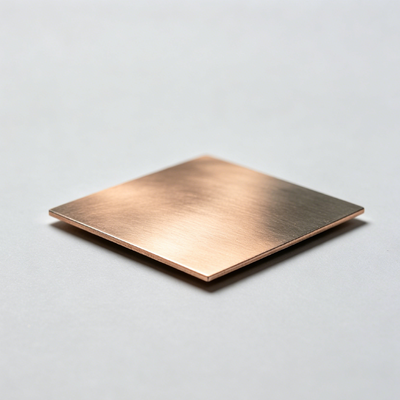

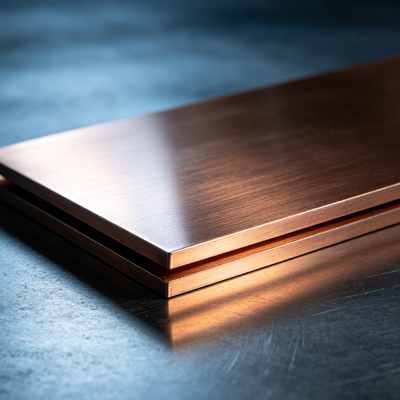

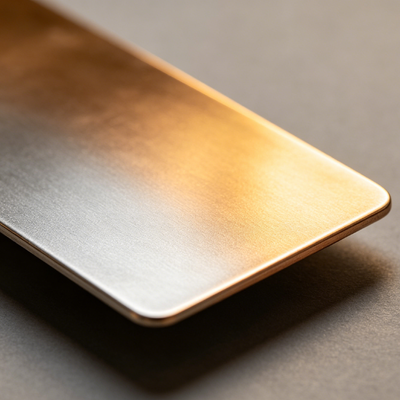

ASTM B171 C71500 Copper Nickel 70/30 Alloy Plate CuNi Sheet for Heat Exchanger
| Lugar de origen | Shangai, China |
|---|---|
| Nombre de la marca | TOBO |
| Certificación | ISO/TUV/SGS |
| Número de modelo | Placa de níquel de cobre |
| Cantidad de orden mínima | 1 pieza |
| Precio | Negociable |
| Detalles de empaquetado | Paquete de envío estándar |
| Tiempo de entrega | 15-30 días de trabajo |
| Condiciones de pago | T/T, Unión Occidental |
| Capacidad de la fuente | 10 toneladas/mes |
Datos del producto
| Nombre del producto | Hoja de CuNi de la placa de aleación de níquel 70/30 de cobre ASTM B171 C71500 para intercambiador d | Ancho | 100 mm - 2000 mm |
|---|---|---|---|
| Color | Rojo amarillo | Plazo de pago | T/T, carta de crédito, Western Union |
| Embalaje | Paquete estándar marinero | Fuerza de producción | ≥170Mpa |
| Dureza | HV 80-120 | Dureza de impacto | ≥25J |
| Conductividad | ≥58%IACS | Aleación o no | es aleación |
| Espesor | 1M M - 10M M | Plazo de precio | CIF CFR FOB EX-TRABAJO |
| Resistencia a la corrosión | Excelente | Acabado superficial | Pulido |
| Resistencia a la corrosión | Alto | Superficie | Brillante, pulido |
| Resaltar | ASTM B171 C71500 Copper Nickel plate,70/30 CuNi alloy sheet,Copper Nickel plate for heat exchanger |
||
Descripción de producto
ASTM B171 C71500 Copper Nickel 70/30 Alloy Plate CuNi Sheet for Heat Exchanger
1. Product Description
Copper Nickel Plate is a wrought copper‑nickel‑iron‑manganese alloy plate with excellent resistance to flowing seawater and impingement attack. The two principal grades are C70600 (90% copper, 10% nickel) and C71500 (70% copper, 30% nickel). Both grades offer a unique combination of mechanical strength, ductility, and resistance to stress corrosion cracking. The material naturally develops a thin, tightly adherent oxide film that passivates the surface and prevents further corrosion. Copper nickel plates are produced by hot rolling and may be cold rolled to achieve tighter tolerances and improved surface finish. They are widely used in critical seawater handling equipment where long service life and low maintenance are required.
2. Product Applications
Naval & Commercial Vessels: Sea water cooling mains, firefighting systems, bilge and ballast piping, sonar domes.
Power Generation: Condenser plates and tube sheets for steam surface condensers, district heating exchangers.
Desalination: MSF brine heaters, evaporator chamber linings, deaerator plates.
Oil & Gas Production: Topside seawater lift pumps, injection water filters, deluge system components.
Industrial Equipment: Chemical tanker cargo piping, heat exchanger baffles, hydraulic line cladding.
3.Product Advantages
Proven resistance to impingement corrosion – Withstands high‑velocity seawater (up to 3.5 m/s for C70600, 4.5 m/s for C71500).
Excellent weldability – No preheating or post‑weld heat treatment needed; filler metals CuNi10Fe1Mn and CuNi30Fe2Mn2 available.
Good resistance to sulphide‑induced corrosion – Suitable for polluted brackish water with controlled H₂S levels.
High ductility (annealed) – Elongation typically 30–45% for C70600, enabling severe bends and flanges.
Low macro‑fouling tendency – Naturally reduces attachment of marine organisms without coatings.
Stable mechanical properties from cryogenic to 300°C – Retains toughness down to −200°C.
Fully traceable production – Each plate marked with heat number and certified to ASTM/ASME standards.
4. Key Product Parameters
| Parameter | Value / Range |
| Alloy Grades | UNS C70600, UNS C71500, BFe10-1-1, BFe30-1-1 |
| Delivery Condition | Hot rolled (HR), cold rolled (CR), annealed (O), stress relieved (SR) |
| Thickness | 0.3 mm – 50 mm (standard); >50 mm available as plate |
| Width | Up to 2500 mm for cold rolled; up to 3000 mm for hot rolled |
| Length | Up to 8000 mm (longer on request) |
| Flatness | ≤3 mm per meter for annealed plate (EN 1652) |
| Surface Roughness (Ra) | 2B finish: ≤0.3 µm; Polished: ≤0.1 µm |
| Typical Hardness (HV, annealed) | C70600: 75–110 HV; C71500: 85–130 HV |
FAQ
1. Are you trading company or manufacturer ?
We are manufacturer ,You can see the certification.
2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
