ASME B16.5 CuNi 70/30 Forged Flange, Class 150 Socket Weld, Marine Grade SWRF

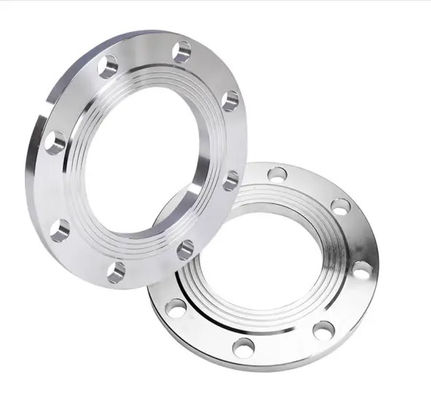

  • ASME B16.5 CuNi 70/30 Forged Flange, Class 150 Socket Weld, Marine Grade SWRF

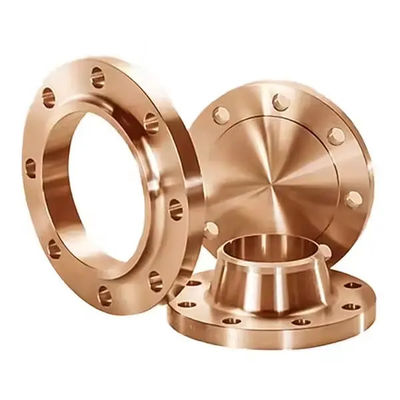

  • ASME B16.5 CuNi 70/30 Forged Flange, Class 150 Socket Weld, Marine Grade SWRF

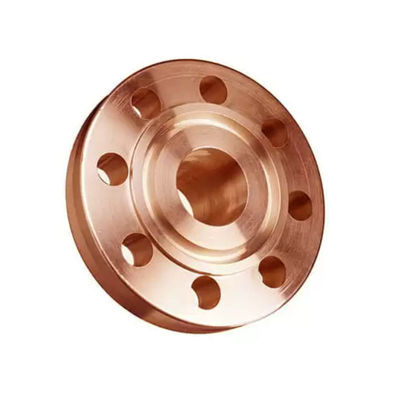

  • ASME B16.5 CuNi 70/30 Forged Flange, Class 150 Socket Weld, Marine Grade SWRF

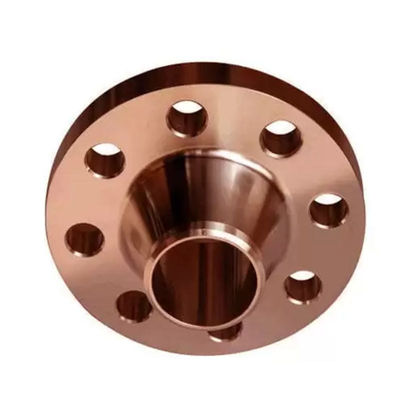

  • ASME B16.5 CuNi 70/30 Forged Flange, Class 150 Socket Weld, Marine Grade SWRF
  • ASME B16.5 CuNi 70/30 Forged Flange, Class 150 Socket Weld, Marine Grade SWRF
Lugar de origen Shangai, China
Nombre de la marca TOBO
Certificación ISO/TUV/SGS
Número de modelo Brida de níquel de cobre
Cantidad de orden mínima 1 pieza
Precio Negociable
Detalles de empaquetado Paquete de envío estándar
Tiempo de entrega 15-30 días de trabajo
Condiciones de pago T/T, Unión Occidental
Capacidad de la fuente 10 toneladas/mes
Datos del producto
Nombre del producto Brida forjada ASME B16.5 CuNi 70/30, soldadura de zócalo clase 150, grado marino SWRF Acabado superficial Liso, pulido o según especificación del cliente
Densidad 8.9 g/cm³ Tipo de conexión Soldadura
Forma Codo Prensa 20bar
Longitud 75 milímetros Rango de temperatura -196°C a 200°C (-320°F a 392°F)
maquinabilidad Bien Calificación 90/10 cobre níquel (UNS 70600)
Solicitud Conectar las tuberías Soldabilidad Bien
Tipo de hilo ASME B1.20.1 (NPT) Tamaño Rane 1/2
Espesor 3x2,5 mm Rango de tamaño 1/2
Deja un mensaje
Descripción de producto

ASME B16.5 CuNi 70/30 Forged Flange, Class 150 Socket Weld, Marine Grade SWRF



1.Product Description

The Copper Nickel Socket Weld Flange is manufactured from high-quality 70/30 Copper Nickel Alloy (CuNi 70/30, UNS C71500) in compliance with ASME B16.5 standard. This forged flange features a Class 150 pressure rating and socket weld connection type. The socket weld design allows the pipe to be inserted into a recessed area of the flange and welded around the outer diameter, creating a strong, leak-proof permanent connection ideal for high-pressure systems . The 70/30 copper-nickel alloy consists of 70% copper and 30% nickel, with trace amounts of iron and manganese, providing excellent mechanical properties and corrosion resistance

.

 2. Applications

Due to the alloy's exceptional resistance to seawater corrosion and biofouling, CuNi 70/30 flanges are widely used in :

  • Marine & Offshore Engineering: Seawater cooling systems, shipbuilding, desalination plants, offshore platforms

  • Petrochemical Industry: Chemical processing, heat exchangers, pressure vessels

  • Power Generation: Nuclear and thermal power plant cooling systems

  • Naval Applications: Naval ship piping systems (DEF STAN 02-879 compliant)

  • Industrial Applications: Hydraulic pipelines, firewater systems, fish farming cages

3. Product Functions

The Copper Nickel Socket Weld Flange serves the following functions in piping systems:

  • Pipe Connection: Provides a reliable, leak-proof connection between pipes, valves, pumps, and other equipment

  • System Access Point: Allows for easy disassembly and maintenance of piping systems

  • Pressure Containment: Safely contains system pressure up to Class 150 rating

  • Flow Direction Control: Facilitates changes in piping direction when used with elbows or tees

  • Equipment Isolation: When used with blind flanges, can isolate sections of the piping system

​ASME B16.5 CuNi 70/30 Forged Flange, Class 150 Socket Weld, Marine Grade SWRF 0

​4.Technical Specifications

Parameter Specification
Material Grade CuNi 70/30 (UNS C71500)
Standard ASME B16.5 / ANSI B16.5
Pressure Class Class 150 (also available: 300#, 600#, 900#, 1500#, 2500#)
Connection Type Socket Weld (SW)
Size Range 1/4" to 24" (DN15-DN600)
Face Type Raised Face (RF) / Flat Face (FF)
Chemical Composition Cu: 70%, Ni: 30%, Mn: 0.5-1.5%, Fe: 0.6-1.0%
Tensile Strength ≥350 MPa
Yield Strength (0.2%) ≥130 MPa
Elongation ≥36%
Density 0.323 lb/in³ (8.94 g/cm³) at 68°F
Temperature Range Up to 400°F (204°C)



FAQ

1. Are you trading company or manufacturer ?
We are manufacturer ,You can see the  certification.
2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
